Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Champions
  • Model Number: AG-C201
  • Operating Temperature: -20℃ - +60℃
  • Max. Current: 5MA
  • Max. Voltage: 24V
  • Key word: universal remote control,433mhz remote control
  • Working voltage: 12V/24V
  • Output way: self-lock,interlock, inching
  • Board size: 58*40*15mm
  • frequency: 315/433mhz/other
  • Quiescent current: 5mA
  • Match code way: Learning code
  • Receiving sensitivity: -105db
  • output singal: output with switch signal / output with voltage
  • channel: 1/23/4 channels

Packaging & Delivery

Packaging Details universal remote control gate remote control switch
1).Each one in a plastic case , carton size: 58*40*15mm
2).packing can be Custom
Delivery Time Sample shipment in 2-5 days,bulk order 10-15 days

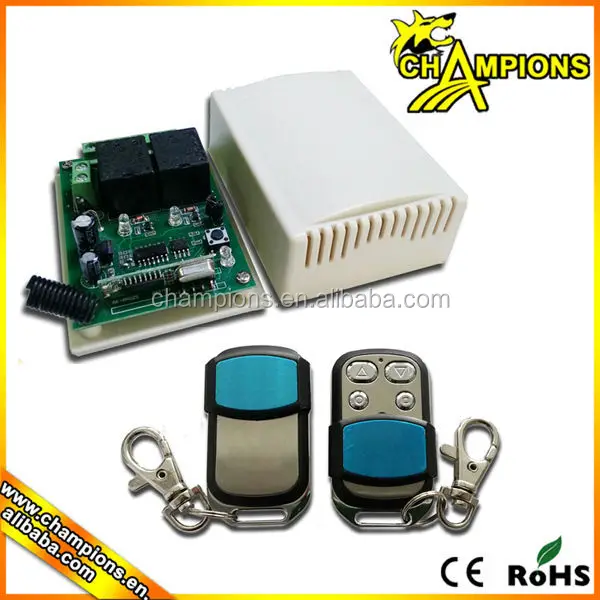

Product Description
Product name
Remote Control Switch
Model
AG-C201
Channel
2 Channels
Working voltage
12V ,24V DC/AC optional
Learning remote way
learning mode
Receiving sensitivity
-105dBm
Output Current
≤10A
Board size
70*50*18mm

Main Technical Parameter

Frequency: 433.92 mhz / 315 mhz other customized
Encoding type: learning code, fixed code, rolling code
Quiescent Current: ≤8mA, one channel working current ≤40mA, two channel working current≤80mA
WorkingTemperature:-20℃- +70℃

AG-C201 is a 12V voltage two channel wireless intelligence receiver controller,It can be controlled to achieve the motor forward and reverse, or switch on,off and other special control requirement. The product has stable performance, small size high receiver sensitivity.Mainly used for electric doors, windows, lifting equipment, gateways, lifts, industrial control and security Industry and other fields, and supporting the use of the remote control can be composed of complete set of wireless intelligent remote control system, wide range of uses,especially for cable doors, windows and burglar alarm control system to change the wireless system wired adapter. The wireless receiver controller,a high-security,stable performance, low power consumption of the features,and easy to use,without using the traditional jumper or DIP switch coding,just the radio signal emitted by the remote control allows the receiving controller receive and store,you can achieve supporting the use.The controller factory default is only a remote control and control, if a good learning remote control is lost during use,simply use the same type of remote control to relearn to cancel the original remote control and made use now right.Its output,respectively,three output way is self-locking,interlock, inching,It can leaning a lot of different remote control (such as2260,1527etc.)

OutPut Way

The working way change can by jumper

A).Inching:Position1,2,3 vacancy, no need jumper connect

Inching function: Press remote A button the controller relay1 ON, release remote A button the controller relay 1OFF

B).Interlock:Jumper connect2,3

Interlock function: Press remote A button thecontroller relay1 ON, press remote B buttonthe controller relay 1OFF, relay2 ON

C). Self-lock: Jumper connect 1, 2

Self-lock function: Press remote A button the controller relay1 ON, Press A button again the controller relay1 OFF
Learning Remote Way

Power On,press learning button,the learning indicator light then off it means entering learning state, press any button of the remote control transmitter signal in 6 seconds,indicator light flash 4 times then ON, it means learning succeed. Remark: This controller can learning many different remote control, if beyond the first remote automatic clear

Wiring diagram

             Control12V device wiring diagram

DC 12V Motor Forward and reversal wiring diagram

Related Products

     AG-C101 & AG080 Kit

        AG-C402 & AG049 Kit


  AG-C202 & AG026 Kit

Our Company

Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.

Certifications
Packing & Delivery

Packing

Standard packing :each one in a plastic bag or white box;

500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.

Delivery

We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.

Our Service

1).Your inquiry related to our products or prices will be replied in 12 hours
2).Well-trained and experienced staffs to answer all your enquires in fluent English
3).OEM & ODM, any your customized products we can help you to design and put into production
4).Protection of your sales area, ideas of design and all your private information
5).Deliver by air mail or ship for your orders

Trade terms

1).Payment:T/T, Paypal and western union, other payment terms can negotiable
2).Bulk order 30% deposits before production,70% balance to be paid before delivery
3) .Samples can be delivered in 3-5 work days
4) .Shipping freight are quoted under your requests
5) .Discounts are offered based on order quantities
6). FOB price are quoted under inquiry

FAQ

1 .What are the advantages of your company?
A .We have our own factory and we are tarding many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& ROHS certification;
D.Offer samples to test.

2. How can i know this model work for me ?
If you have a model in hand, please take a clear picture of the PCB board send to us then we will help you .

3. How long can the remote control use ?
ln generally the remote control can be used for many years Only need to replace the battery .

4. Do your products carry warranty?
Yes, 12 month warranty.
