DC12V 4 CH RF Wireless Radio Switch Momentary Toggle Latched For Light Lamp 433mhz

FOB Reference Price:Get Latest Price
$2.50 - $5.00 / Pieces | 50 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Champions
Model Number:
AG-C402
Operating Temperature:
-40℃ - +80℃
Max. Current:
5A
Max. Voltage:
24V
Key Word:
433MHz 4 channel remote control switch
Frequency:
433.92Mhz / 315Mhz / others
Working Voltage:
DC12V/ 24V/ 6V /9V
Quiescent current:
5mA
Output way:
self-lock, interlock, inching
Channel:
4 channels
Receiving Sensitivity:
-105db
Dimensin:
72*52*26mm
Match code way:
Learning code
output singal:
output with switch signal / output with voltage
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1). Each one in a plastic case , carton size: 58*40*15mm
2). Packing can be Custom
Port
Shenzhen
Lead Time :
Sample shipment in 2-5 days, bulk order 10-15 days
Product Description

DC12V 4 CH RF Wireless Radio Switch Momentary Toggle Latched For Light Lamp 433mhz


Product name
Remote Control Switch
Model
AG-C402
Channel
4 Channels
Working voltage
12V ,24V
Learning remote way
learning mode
Receiving sensitivity
-105db
Quiescent current
5mA
Board size
72*52*26mm

Specification:
RF Frequency: 433MHZ/315MHZ
Working Voltage: DC12V ,DC24V ,AC12V ,AC24V optional
WorkingTemperature:-20℃- +70℃
Standby Current: 5MA
RF Working Mode: Super heterodyne receiver
Receiver Sensitivity: -105 dBm
Remote Control Distance: >100 meter(in open environment)
Support remote control type: learning code,Fixed code, (Rolling code can customized)
Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)
Output : output with switch signal / output with voltage
Wiring Method: Fixed wiring terminal
Output Current: 10A


Features:
It has 4 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 10pcs different remote controls.

OutPut Way
The working way change can by jumper
A). Inching: Position1,2,3 vacancy, no need jumper connect
Inching function: Press remote A button the controller relay1 ON, release remote A button the controller relay 1OFF
B). Interlock: Jumper connect2,3
Interlock function: Press remote A button thecontroller relay1 ON, press remote B buttonthe controller relay 1OFF, relay2 ON
C). Self-lock: Jumper connect 1, 2
Self-lock function: Press remote A button the controller relay1 ON, Press A button again the controller relay1 OFF

Learning Remote Way
Power On, press learning button,the learning indicator light then off it means entering learning state, press any button of the remote control transmitter signal in 6 seconds,indicator light flash 4 times then ON, it means learning succeed. Remark: This controller can learning many different remote control, if beyond the first remote automatic clear

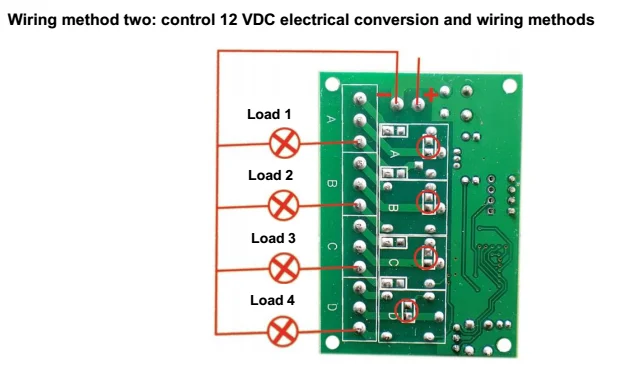

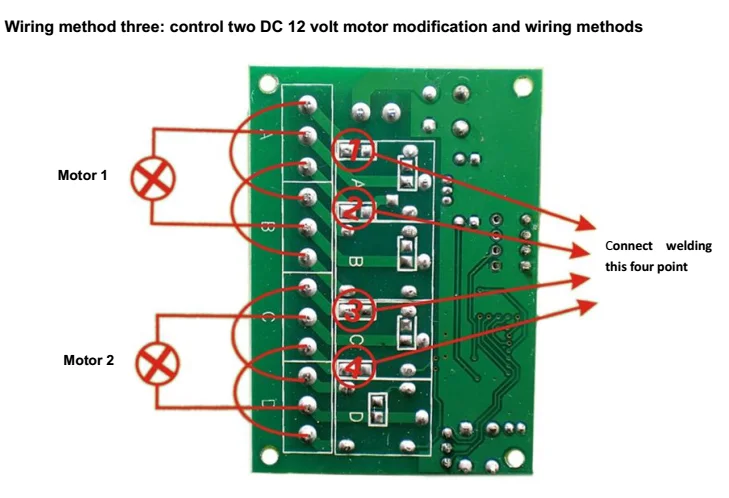

Wiring Method

Related Products

             AG-C101

               AG-C100


                AG-C110

Our Company

Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .

Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.

Our Service

1). Accept OEM & ODM
2). Sample for testing could be arranged
3). Print logo on the case and pakage
4). Deliver by air mail or ship for your order
5). Your inquiry related to our products or prices will be replied in 12 hours

Trade terms
1). Payment:T/T, Paypal and western union, other payment terms can negotiable
2). Bulk order 30% deposits before production,70% balance to be paid before delivery
3). Samples can be delivered in 3-5 work days
4). Shipping freight are quoted under your requests
5). Discounts are offered based on order quantities
6). FOB price are quoted under inquiry

Certifications
Packing & Delivery

Packing

Standard packing :each one in a plastic bag or white box;
500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.

Delivery

We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.

FAQ

Before Order please confirm

1. What frequency you need, 315mhz or 433.92mhz or others?

2. What voltage you need?

3. How long distance you need?

4. What function you need and where do you used in?

5. You only need buy this control switch or need remote control work with it?
